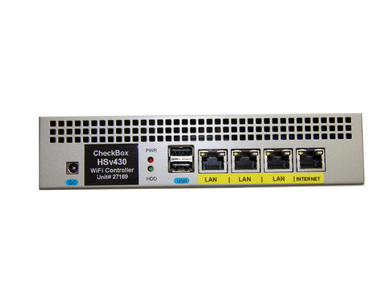

The CheckBox HSv430 is a completely self-contained, stand alone guest Internet solution, ideal for motels, inns, restaurants, bars, marinas, function halls and more. The HSv430 works with any high speed Internet connection and does not require a dedicated computer.

The HSv430 includes S/A/F/E - The Survey And Feedback Engine and MultiNet - the ability to host two different guest networks and one encrypted private management network with just one controller and one set of access points.

With CheckBox you are in control.

*You determine what or if to charge
*You keep 100% of the revenue
*Compatible with all operating systems
*No required monthly fees (except internet access from your ISP)

The CheckBox HSv430 provides an automatic welcome page for each guest network, redirecting all of your guests automatically to a welcome page featuring your properties graphics or images, welcome message, and options for connecting to the internet. After the guest is validated on the system they are given a message confirming that their access has been enabled, and are then redirected to a website you define, such as your web or social media page. From there guests can post, surf, email, and chat until their time expires.

With MultiNet your CheckBox can provide separate multiple networks without any additional hardware. Multinet allows your CheckBox system to provide two separate guest networks and one encrypted management network with just one CheckBox controller and one set of CheckBox access points.

You can choose one or more ways to authenticate access - to allow guests on line. Choices include:

• * Paper tickets with unique access codes
• * Credit card and/or Paypal access
• * Limited Free Access
• * Unlimited Free Access
• * PermaCode, a property wide shared password
• * API integration with your loyalty program
• * API integration with your property management system

Behind the scenes CheckBox automatically validates user's credentials, logs them on, regulates their bandwidth usage and logs them off when their time expires, all with no intervention by you or your staff.

With S/A/F/E - the Survey And Feedback Engine, after your guests log on you can automatically send them a welcome text or email. During their visit they can reply to that text or email to communicate with your organization in real time, and after they leave the system can send an automatic follow up message and an optional survey. With S/A/F/E your CheckBox does more than connect your guests to the Internet - it connects them to you!

All Systems Include:
* Customizable Welcome Page / Splash Page
* Private Management Screens
* A 30 day warranty of satisfaction
* Point-of-Sale / Door Stickers and user guides
* Web based administrative tools
* 1 year of Remote access for off-site property management
* 1 Year of 24/7 monitoring w/ text or email notifications of outages
* 1 Year of Automatic software upgrades
* 1 Year Hardware Warranty
* 1 year of Support for you and your staff

 All CheckBox HSv430 systems Feature:

• * Captive portal - no WEP or WPA required
• * Supports wired and wireless clients
• * Splash page and redirect page fully configurable - no vendor banner ads or logos required
• * Splash page can be location or region specific
• * Splash page can be dynamically updated with your current CMS (content management system)
• * Domain White List - allow access to pre-specified domains without validation
• * Multiple validation options - tickets, limited or unlimited free access, credit cards & Perma codes
• * Property Management Integration - Supports integration with Property Management Systems
• * Participant loyalty/rewards program capable with provided API
•  * VPN support for end clients for connecting to corporate clients
• * Unified SSID throughout system, supports roaming among AP's
• * Compatible with all Operating Systems - No configuration changes required on guest laptops
• * UPnP supported
• * Support for static IP clients
• * Supports throughput of up to 100MB/s
• * Supports self-correcting mesh architecture with redundant connections between nodes
• * Self-configuring architecture supports wireless & wired mesh nodes for rapid, low cost deployment
•  * Client-to-Client security isolation supported
• * Bandwidth throttling and management
• * System firewall to protect guests from external threats
• * Tunneling VPN for easy management without port forwarding, static IP's, or manual DMZ settings
• * Easily operates outside of corporate telecommunication infrastructure for PCI compliance
• * Can be used with external content filtering services
• * Web based administrative tools
• * Remote access for off-site property management
• * 24/7 monitoring with text or email notifications of outages
• * Automatic software upgrades
•  * SMTP redirect available
• * Live 24/7 Guest Support available

Unit Requires a protected, indoor mounting location, 110V AC Power and a broadband internet connection. CheckBox AX access point(s) required for wireless clients. Includes ethernet cable and AC power adapter.
